Specifications:
- Interface: integrated LAN and WLAN, USB x 2, HDMI x 1, mini DP x 1, optional 4G module
- Light sources: IR and visible light; optional: UV-A
- Image formats: JPG, BMP, PNG
- Image scan: 150 to 500 dpi resolution
- Certifications: CE, FCC, WEE, RoHS, UL
ADD TO WISHLIST
Data sheet
The PENTA OEM product line includes document scanners specifically designed for an easy integration in gates, kiosks and counters. It includes the PENTA Scanner® Block and the PENTA Scanner® Cube. Both devices are designed to handle all size restrictions and integration challenges. Their state-of-the-art scan technology achieves fast and effective read results from passports, ID cards, visas, drivers´ licenses, paper and electronic barcodes, RFID documents, and even NFC reading.
Two different housing sizes allow for an easy and convenient integration in the smallest kiosks, counters or gates. No matter if you choose the compact PENTA Scanner® Cube or the even smaller PENTA Scanner® Block - both devices stand out by a housing design that meets all your demands. Thanks to the certification according to IP54 standards the devices withstand dust and water spillages. All features guarantee a fast and efficient data capture and a long life cycle in self-service installations at the airport.

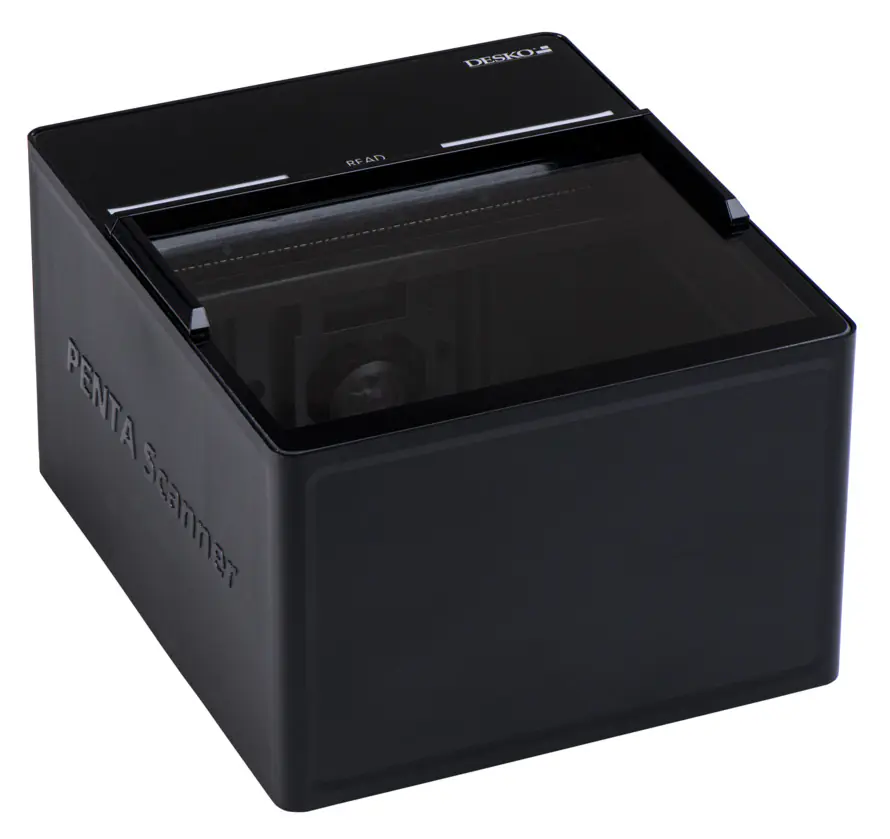

PENTA Scanner® Block
- Machine-readable Zone (OCR): ISO/IEC 7501-1, ICAO 9303 and ISO 18013
- Light Sources: IR and visible Light
- Security Glass: Corning® Gorilla® Glass 3
OPTIONAL FEATURES
- Light Sources: UV-A
- Barcode: 1D/2D barcodes from paper or display (smartwatch, smartphones, tablets), e.g. QR Code or PDF 4717
DATA OUTPUT
- Image Formats: JPG, BMP, PNG
- Image Scan: resolution 150 up to 500 dpi
DOCUMENTS
- Machine-readable Zone: e.g. passports, ID cards, visas, drivers´ licenses
- Barcode: e.g. boarding passes, tickets
