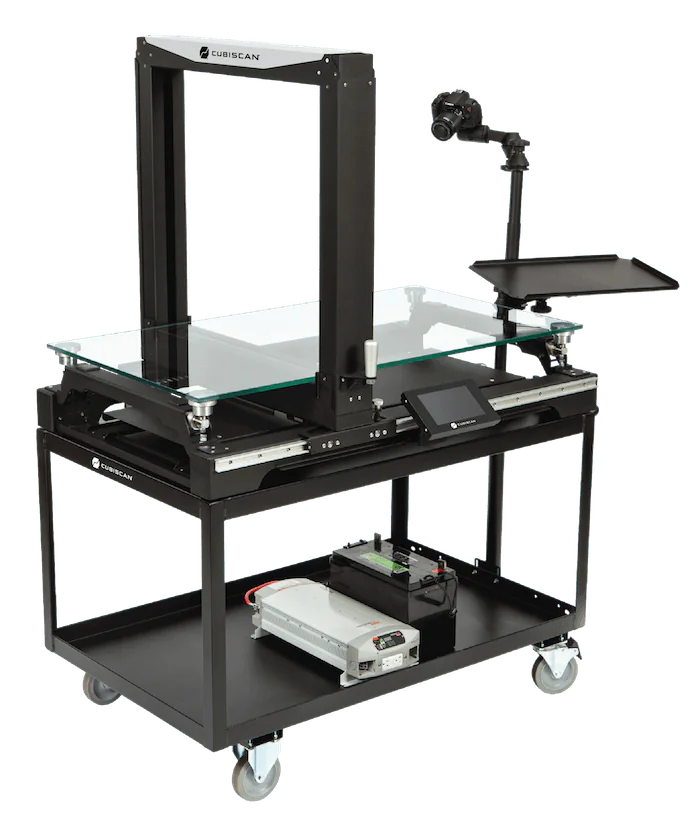

The Cubiscan 325 uses infrared light diodes to measure irregular items from eyeglasses to apparel. The CS 325’s primary strength is producing highly accurate measurements on un-boxed, irregular items. The infrared light sensing technology also allows it to measure cuboidal or boxed items. Designed specifically to measure and weigh medium-sized SKUs for distribution, packaging, and warehousing applications, the CS 325 is fast becoming one of our most popular products.

Parcel Types: Irregular, un-boxed, cuboidal and boxed items
Applications: Warehousing and space management

The Cubiscan 325 is a volume measurement system designed to accurately dimension and weigh medium-sized items for distribution, packaging and warehouse fulfillment. Patterned after the Cubiscan 25, the Cubiscan 325 uses infrared sensing technology to collect product dimensional data on SKUs in warehousing and receiving applications. With an increased measurement capacity, the 325 is better equipped than the Cubiscan 25 to dimension and weigh large items.

A popular product in shipping, distribution, and on-demand box-making applications, the Cubiscan 325 is designed to maximize storage space and enhance cartonization methods. These benefits lead to reductions in the use of packaging materials and decrease dimensional-based shipping charges. The cube and weight data collected by the 325 also benefits the environment by reducing packaging waste and minimizing fuel emissions.

The Cubiscan 325 also includes a compression feature which provides an accurate method to measure and pack apparel for slotting and order fulfillment purposes. The Cubiscan 325 is simple to operate with a user-friendly touch display and easy-glide measuring gate. This cutting-edge measuring system delivers an impressive dimensioning solution for shippers to proactively manage the continuous increase in warehousing and fulfillment costs.

Product features:

• Infrared light sensing technology
• Compression feature for apparel
• Impressive 0.05” resolution
• Intuitive and user-friendly touch display
• Complete mobility (battery included) means easy access and use in warehouse aisles
• Extremely accurate data enhances the ability for on-demand, box-making applications
• Compression feature greatly enhances accuracy when measuring apparel
• Easy-glide gate makes for quick and effortless measurements

MEASUREMENT RANGE

• Length: 0.2 to 90.0 cm
• Width: 0.2 to 60.0 cm
• Height: 0.2 to 60.0 cm
• Weight capacity: 0.002 to 25.000 kg
