Specifications:
- Simultaneous front and back scanner
- High image quality
- Decoding of the information contained into the document through OCR SW equipped with Artificial Intelligence
ADD TO WISHLIST

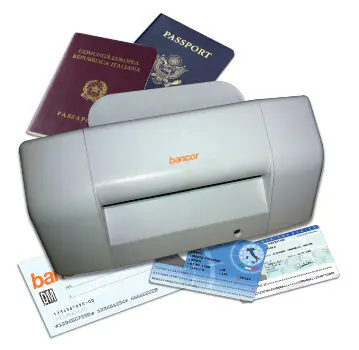

bancor bPass 60 is an ultra-compact scanner to quickly manage documents up to A6 size (like bank checks, bank payments, identity documents, etc): in just 1 second it’s able to read the data contained into the document.
Benefits:
-
Optimization of the document management processes, both of Front and Back Office
-
Managing quickly, securely and effectively the data contained into the documents, up to A6 size
-
Smart Workstations with an attractive Design
-
Better Client Experience of consumers, whether they are customers of a bank or citizens of a public administration office, whether they are travelers of an hotel or airport customs
Dimensions & Weight: The smallest in its market, compactness and lightness are two key features
Document specifications:
-
Maximum size: A6, 10,5 x 14,6 cm (8.26’’x11.81’’)
-
Minimum size: A10 2,6 x 3,7 cm (1.02’’x1.45’’)
-
Thickness: 70-120 gr/m^2 (5 -79 lb)
Optimized electronic management: Images, documents and related data, can be easily transmitted in real time to your system and / or stored in a data base
Software: bancor Console for document management and decoding
Reading font and software optional
-
Linear and Bi-dimensional Bar Code: PDF417, EAN8, EAN13, 3of9, 2of5, 128, 93, UPCA, UPCE, CODABAR, QR code
-
bancor IDdoc for a sophisticated reading of any ICAO standard identity document
-
bancor Micro Hole and IQA for advanced cheque management
-
bancor OCR-BMRF for the management of proxies; bank deposit slips, post office deposit slips, etc
-
and many others
-
It is also able to read 1D and 2D barcodes (if present) and RFID with decryption key
Image quality: Resolution is automatically optimized according to data decoding:
-
Contact Image Sensor (CIS)
-
Resolution:
-
Grayscale: 256 levels, up to 200 dpi
-
Color: 24 bit, up to 200 dpi
-
-
Image format: Tiff (G3,G4), Jpeg, Bmp e Pdf
-
Autocrop: automatic removal of borders
-
Auto deskew: automatic rotation
Technical specifications:
-
Scanning Speed: 1 second per document (B/W or grayscale @200dpi)
-
Power Consumption: 20W or less (sleep: less than 3W)
-
HW interface: USB 2.0
-
SW interface: TWAIN, bancor SDK-API
-
Power: from 100 to 240 VAC, 50-60 Hz.
-
Operating conditions: 10°-50° C (50-104 °F), 0-80% R.H.
-
Operating Systems (32 & 64 bit): Windows® 7, Windows® 8.x , Windows® 10.x; Android 7.1 or upper, CITRIX Ready, Linux
Additional Optionals:
-
Smart Card: read / write up to two slot (standard ISO/IEC 7816, PCI-DSS compliant)
-
Badge reader: two or three tracks
-
RFID: Radio frequency identification
-
MICR: Magnetic head reader (not compatible with rigid documents)
-
96 dpi inkjet Printer (1 line)
-
300 dpi inkjet Printer (4 line)
-
Thermal printer 58 mm
-
LAN interface network
-
Finger Print
-
IR: Infra Red Scan (850 nm)
-
UV: Infra Red Scan (365 nm)
-
Double feed detection (not in the case of document management)
-
Color: black
Certifications: UL / CAS / FCC Class B / CE
Environmental sustainability: energy star, WEEE and RoHS
